Speeding up Dictionary with structs

If you’re a C# developer, you’re probably familiar with the Dictionary class. Most likely, you’ve used it with classes as values. But what if I told you that structs can be used instead — and you can even avoid performance issues from copying? Yes, there’s a way to do that, and it’s fast.

Disclaimer

The information here only applies in specific situations. Benchmark results may vary depending on hardware, compiler version, or runtime behavior. Always test your code yourself — don’t rely only on articles like this one.

Use Case

Let’s say you have a data array data. Your task is to:

1. Convert data into a dictionary.
2. Find a value by key and modify it.
3. Repeat step 2 multiple times.

Here’s a simple version of that:

var dict = new Dictionary<int, SomeClass>(Length);

foreach (var (i, obj) in data) {
    dict.Add(i, obj);
}

for (int i = 0; i < Length; i++) {
    dict[i].DoWork(i);
}

The code works as expected. Let’s now replace SomeClass with a SomeStruct and see how the performance compares:

var dict = new Dictionary<int, SomeStruct>(Length);

foreach (var (i, obj) in data) {
    dict.Add(i, obj);
}

for (int i = 0; i < Length; i++) {
    var obj = dict[i];
    obj.DoWork(i);
    dict[i] = obj;
}

Benchmark

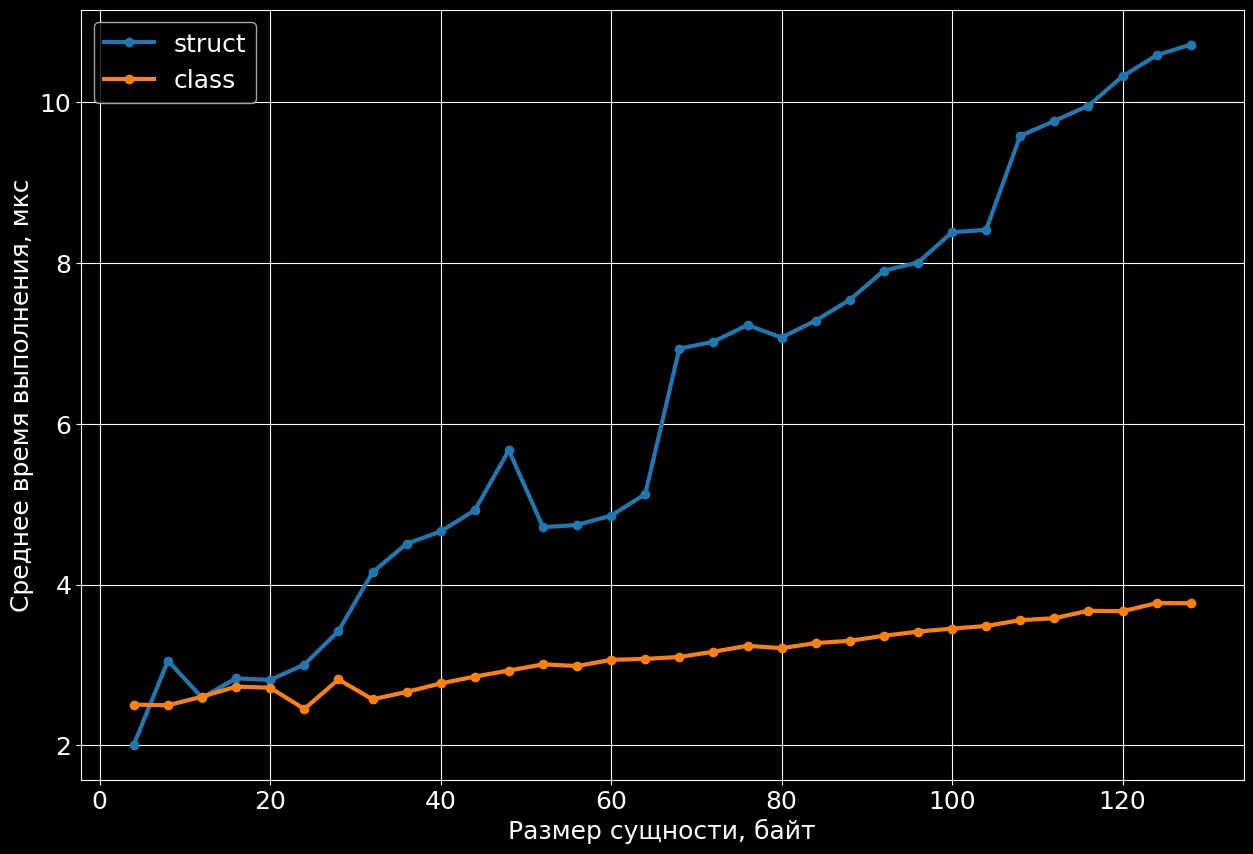

The test was run using an array of 100,000 elements. Struct and class sizes varied from 4 to 128 bytes. I used BenchmarkDotNet for performance testing. The code and results are available on GitHub.

The results show that performance drops when struct size exceeds 20 bytes. Structs are copied multiple times, and dictionary lookups happen twice. Let’s break this down to see how we can improve it.

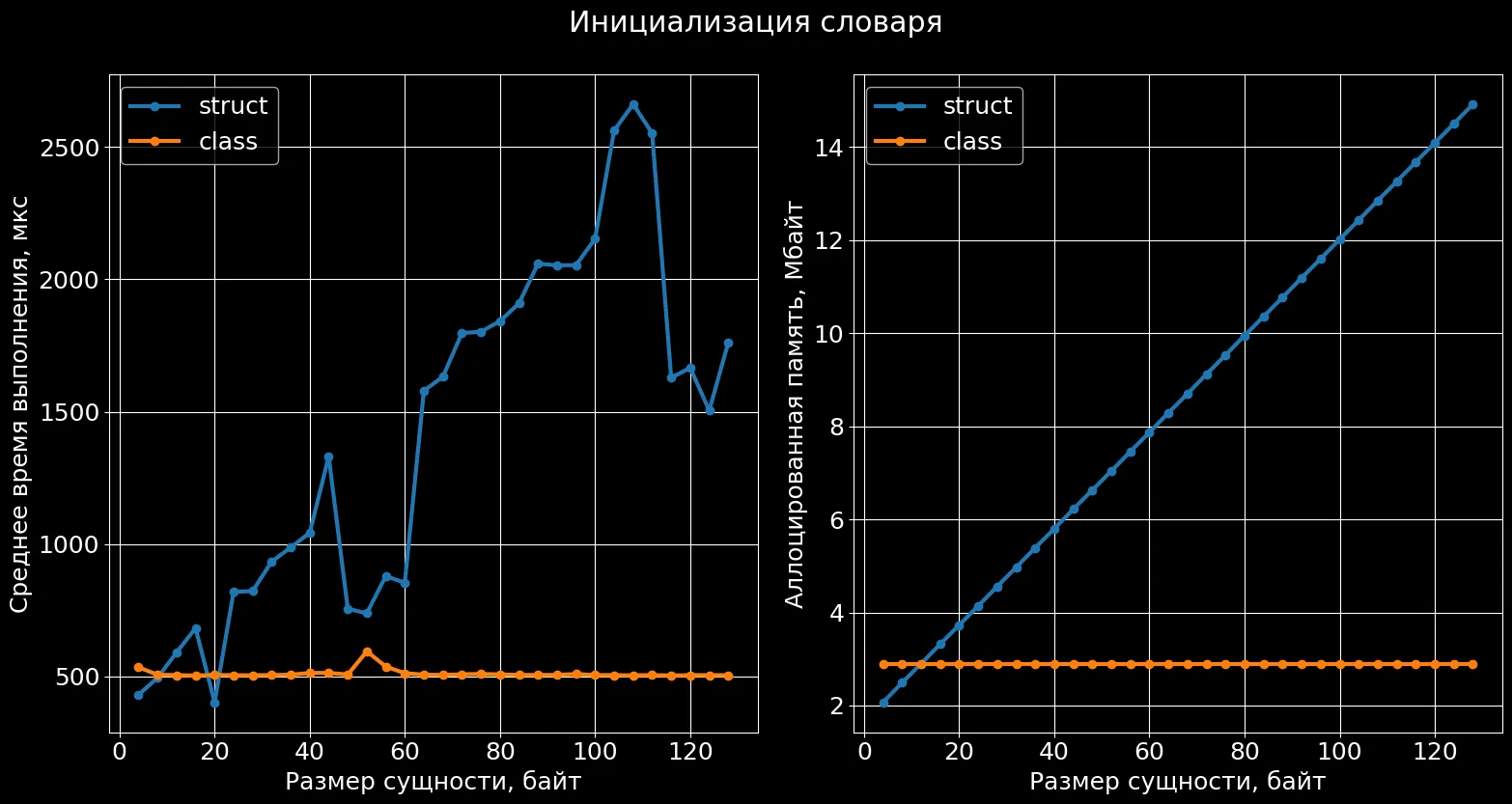

Dictionary Initialization

The results are expected: initialization time grows linearly with struct size.

This happens because the entries array stores struct values directly — not references. So, larger structs require more memory.

Technically, class-based versions also consume memory — but it happens earlier, during data array creation. If we include array creation in the measurements, classes may perform worse. But that’s beyond this article.

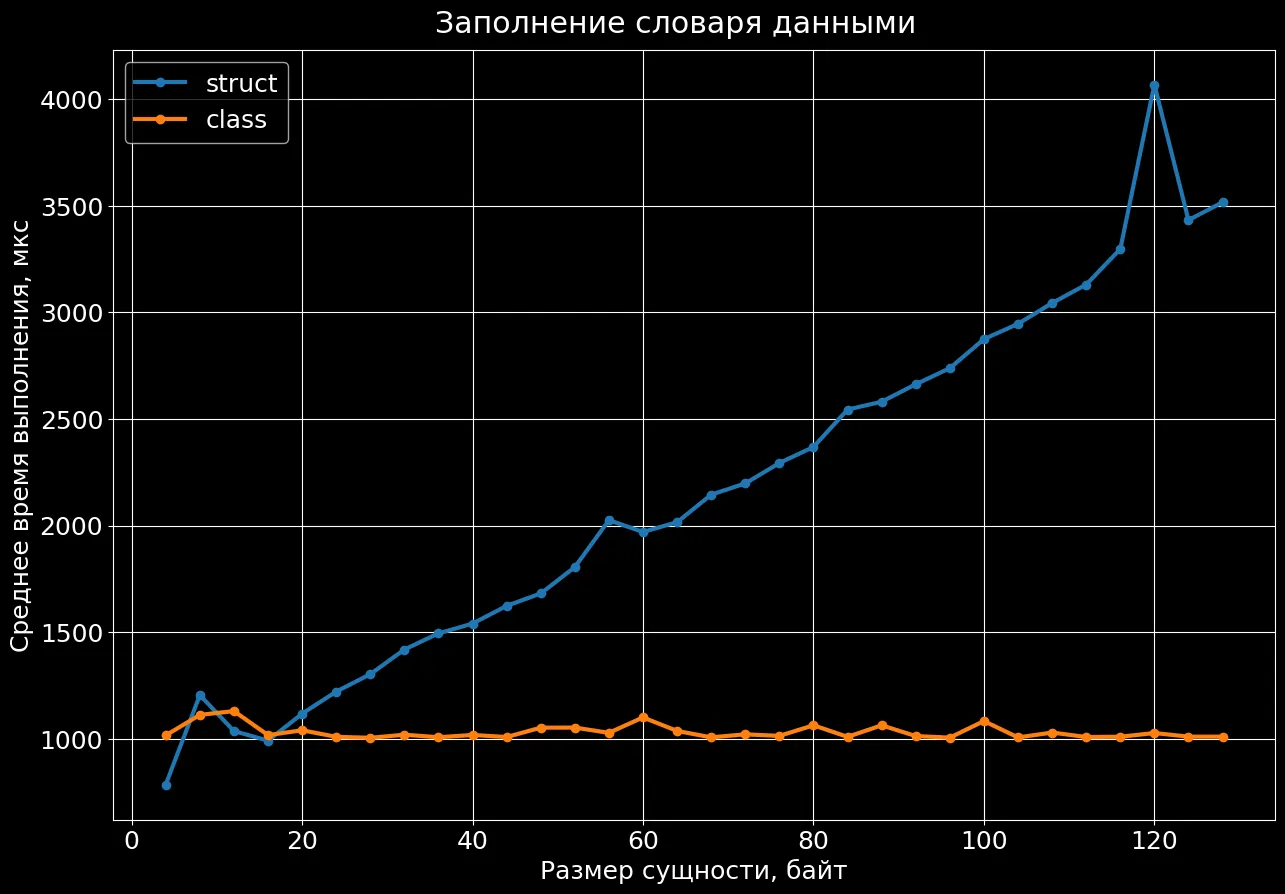

Dictionary Fill

Again, results are as expected: fill time increases with struct size. Up to 20 bytes, the difference is small.

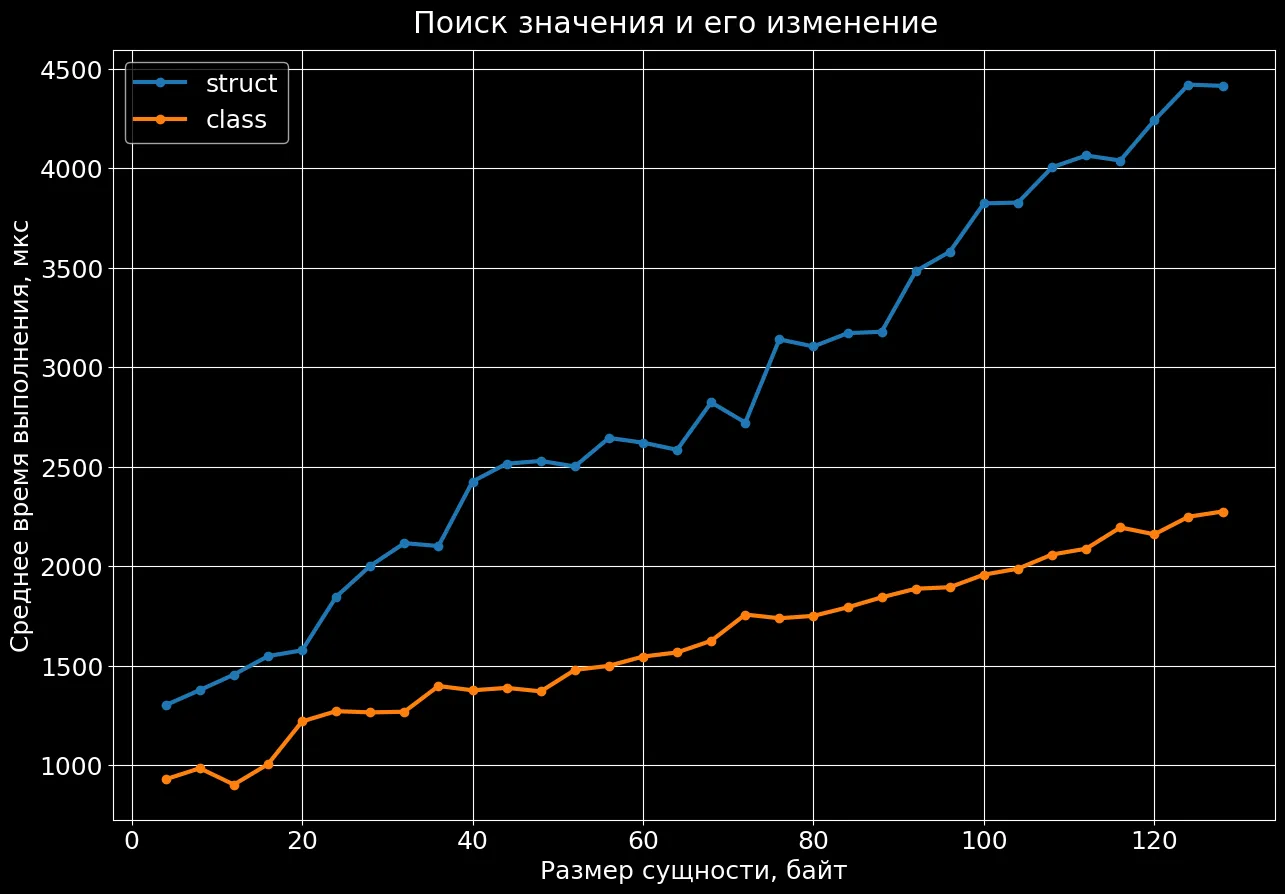

Lookup and Modify

For the third time — structs perform worse.

This is because structs are copied twice during each access:

SomeStruct s = dict[i]; // 1st lookup + copy
s.DoWork(i);
dict[i] = s;            // 2nd lookup + copy

This is where CollectionsMarshal comes in handy.

What is CollectionsMarshal?

CollectionsMarshal is a helper class with four methods:

1. AsSpan<T> – gets a span from a List<T>
2. GetValueRefOrAddDefault<TKey, TValue> – gets a reference by key or adds a default value
3. GetValueRefOrNullRef<TKey, TValue> – gets a reference or returns a null-like ref
4. SetCount<T> – sets the Count of a list

We only care about the second and third methods. They allow us to get a reference to a value in the dictionary and avoid copying:

ref SomeStruct s = ref CollectionsMarshal.GetValueRefOrNullRef(dict, i);
s.DoWork(i);

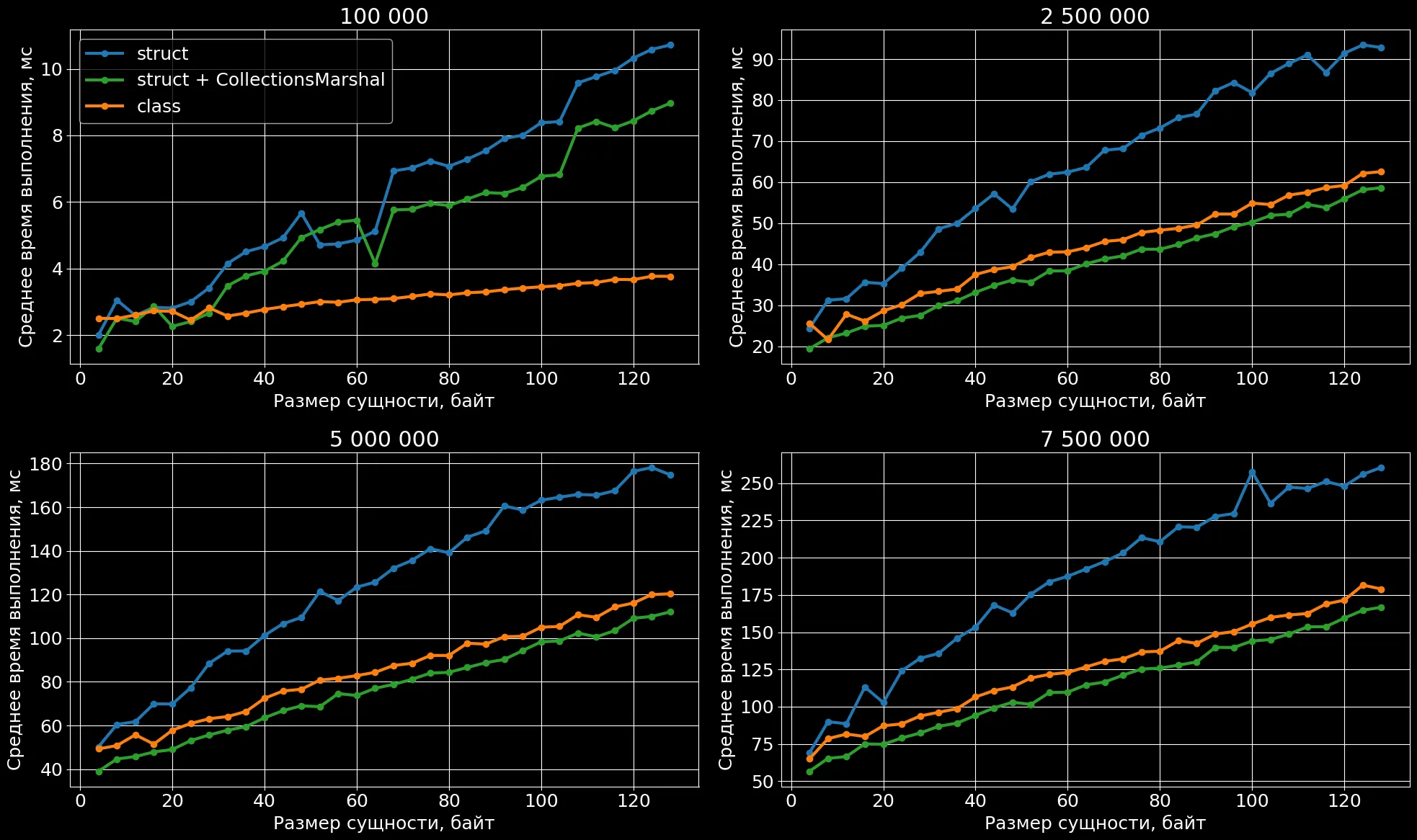

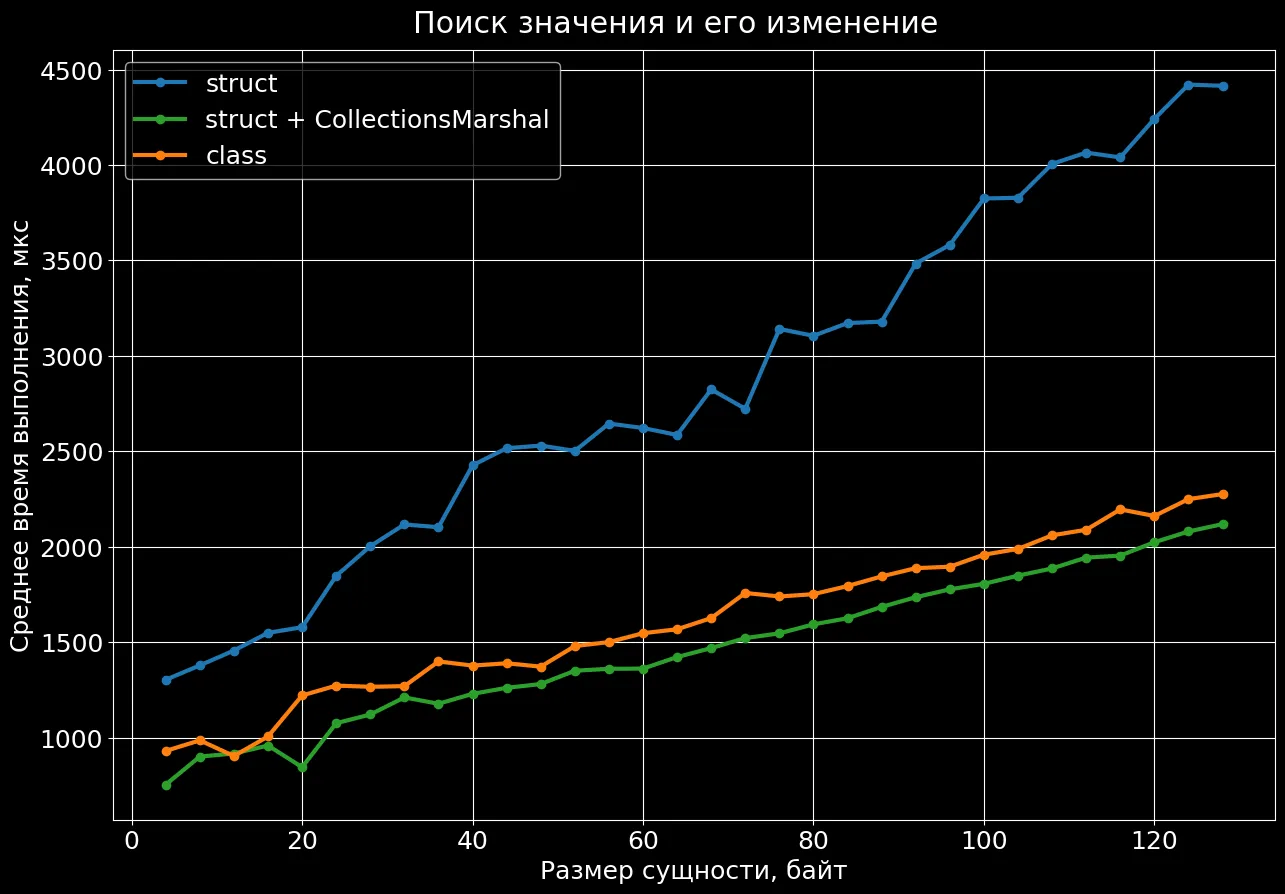

More Benchmarks

Let’s benchmark this ref-based version and compare:

It’s even faster than using classes! But this gain only matters if you have lots of lookup operations.

CollectionsMarshal Gotchas

Checking for default and null

As mentioned earlier, GetValueRefOrAddDefault returns a reference to a default value. You can check if it existed using the out flag:

ref var element = ref CollectionsMarshal.GetValueRefOrAddDefault(
    dict, key, out bool exists);

if (exists) {
    // safe to modify
}

With GetValueRefOrNullRef, there’s no flag. Comparing to null throws a NullReferenceException. Instead, use Unsafe.IsNullRef:

ref var element = ref CollectionsMarshal.GetValueRefOrNullRef(dict, key);
if (Unsafe.IsNullRef(ref element)) {
    // not found
}

Don’t modify the dictionary after getting a ref

The docs say clearly: don’t modify the dictionary after taking a reference. Here’s why:

ref var element = ref CollectionsMarshal.GetValueRefOrNullRef(dict, key);

Console.WriteLine($"ref element: {element.Item1}"); // 30
Console.WriteLine($"dict[key]: {dict[key].Item1}"); // 30

element.Item1 = 50;

Console.WriteLine($"ref element: {element.Item1}"); // 50
Console.WriteLine($"dict[key]: {dict[key].Item1}"); // 50

dict.Add(100, new (100));
element.Item1 = 60;

Console.WriteLine($"ref element: {element.Item1}"); // 60
Console.WriteLine($"dict[key]: {dict[key].Item1}"); // 50 ← reference lost

Conclusion

Structs are an underrated feature in C#. Under the right conditions, they can boost performance. When using structs as dictionary values, consider using CollectionsMarshal. The methods GetValueRefOrAddDefault and GetValueRefOrNullRef return references, allowing you to skip extra lookups and copies. This can significantly improve performance when there are many lookup operations.
